3.5-4TPD palm kernel oil press machine/groundnut peanut oil pressing

  • 1 - 4 Pieces
    $1,800.00
  • 5 - 9 Pieces
    $1,700.00
  • >=10 Pieces
    $1,600.00
Model Number:
YZYX10(95)
Power(W):
7.5kw or 11kw
Shipping:
Support Sea freight
Lead Time:
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 20 Negotiable
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Manufacturing Plant, Farms, edible oil mill production
Condition:
New
Usage:
Coconut Sunflower Peanut Palm Oil
Type:
Cold & Hot Pressing Machine
Automatic Grade:
Automatic
Production Capacity:
3.5-4TPD
Place of Origin:
China
Brand Name:
Guangxin
Voltage:
220V/380V
Dimension(L*W*H):
1650*680*1320
Weight:
520kg
Certification:
ISO9001:2008;SGS;TUV
Warranty:
1 YEAR
After-sales Service Provided:
Free spare parts, Video technical support, Online support
Product name:
YZYX10(95) palm oil processing machine
Color:
Can be customized
Capacity:
145-166kgs/h
Raw material:
Oil Seeds
oil content of dry cakes:
<=7.8%
spiral axes rotate speed(r/min):
32-40
Advantage:
Simple Operation/high efficiency
Application:
Screw Oil Expeller
Material:
Carbon Steel Q235
Company character:
manufacturer with export right
Supply Ability
Supply Ability:
600 Set/Sets per Month palm oil processing machine/sesame oil extraction machine

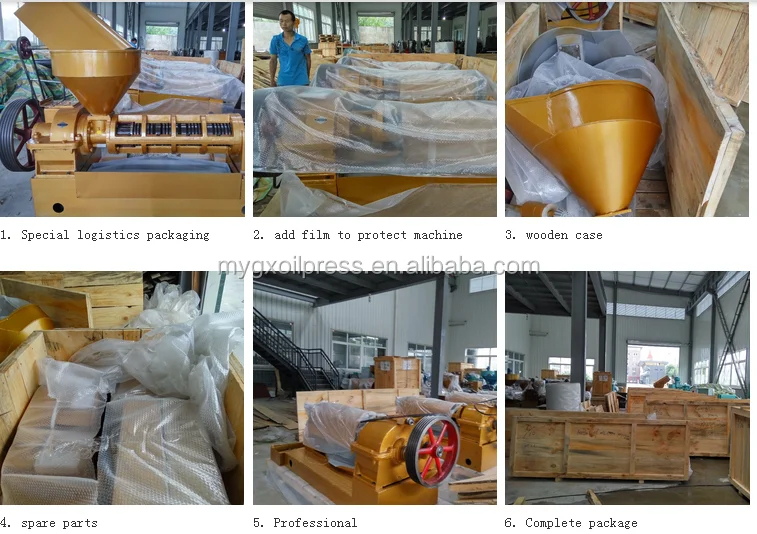

Packaging & Delivery
Packaging Details
1. Water Proof Film
2. Standard Exporting Plywood Case(Fumigation customered )
3. Packing each of parts carefully
3.5-4TPD palm oil processing machine/sesame oil extraction machine
Port
Any China Port
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 20 To be negotiated
Video Description
Product Description

3.5-4TPD palm oil processing machine/sesame oil extraction machine

oil pressers oil press machine oil mill oil extraction machine oil processing machine
Honest partner ---Guangxin company

The series YZYX10(95) spiral oil press produced by our company is suitable for squeezing vegetable oil from rapeseed, cottonseed, soybean, shelled peanut, flax seed, tung oil seed, sunflower seed and palm kernel, etc. The product has characteristics of small investment, high capacity, strong compatibility and high efficiency. It is widely used in small oil refinery and rural enterprise.

3.5-4TPD palm oil processing machine/sesame oil extraction machine

ITEMS
YZYX95B(C), YZYX10-2(4)
REMARKS
Revolving speed of spiral axis (r/min)
32-42
Drive by
Triangle belt
Power required (KW)
7.5 or 11
Electro-motor
Measurement (mm)
1650 x 680 x 1320
L x W x H
Weight (kg)
520

YZYX95B and YZYX10-2 is big power spiral oil press (normally called 2-step-squeezing). It is suitable for constantly hot squeezing high oil content oil plants, represented by rapeseed, because of higher pressure in the squeeze chamber. The squeeze power is significantly higher.

YZYX95C and YZYX10-4 is 3-step-squeezing spiral oil press. It is improved on the basis of our company's successful practical experiences, suitable for users with operation experiences and stress on low oil content of the dry cakes.

YZYX95-1C is another new model developed on the basis of series 95 spiral oil press, connecting the features of cotton seeds. Besides the same performances with above models, YZYX95-1C is better when squeeze cotton seeds.

3.5-4TPD palm oil processing machine/sesame oil extraction machine

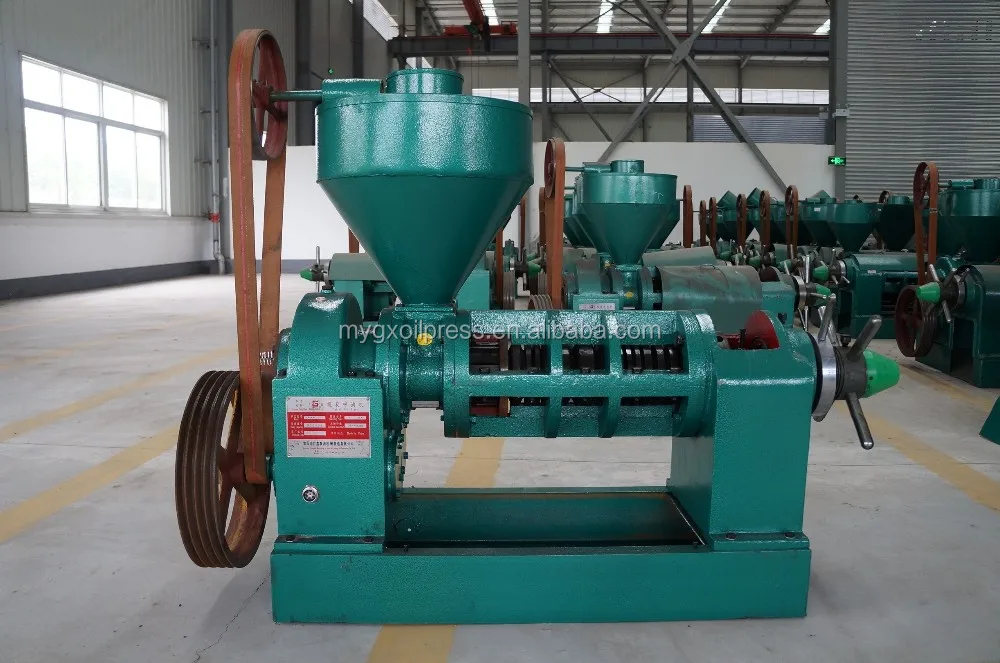

Characteristics of YZYX10(95)

1. Healthy! Physical squeezing craft maximally keeps the nutrients such as the protein, fatty acids and minerals, etc.
2. High working efficiency! The spiral squeezing structure can achieve high oil output, thus the oil content of the residue cake is low.
3. Long durability! All the parts are made of the most suitable material and treated with refined crafts to ensure the long term runing, such as cemented quenching and tempering to increase the hardness, consequently the durability.
4. Cost-effective! The wearing parts on the machine such as the squeeze loop, squeeze spiral and squeeze bar are designed to be dismountable. When they are out of service period, users only need to replace them and no need to displace the whole machine.

3.5-4TPD palm oil processing machine/sesame oil extraction machine

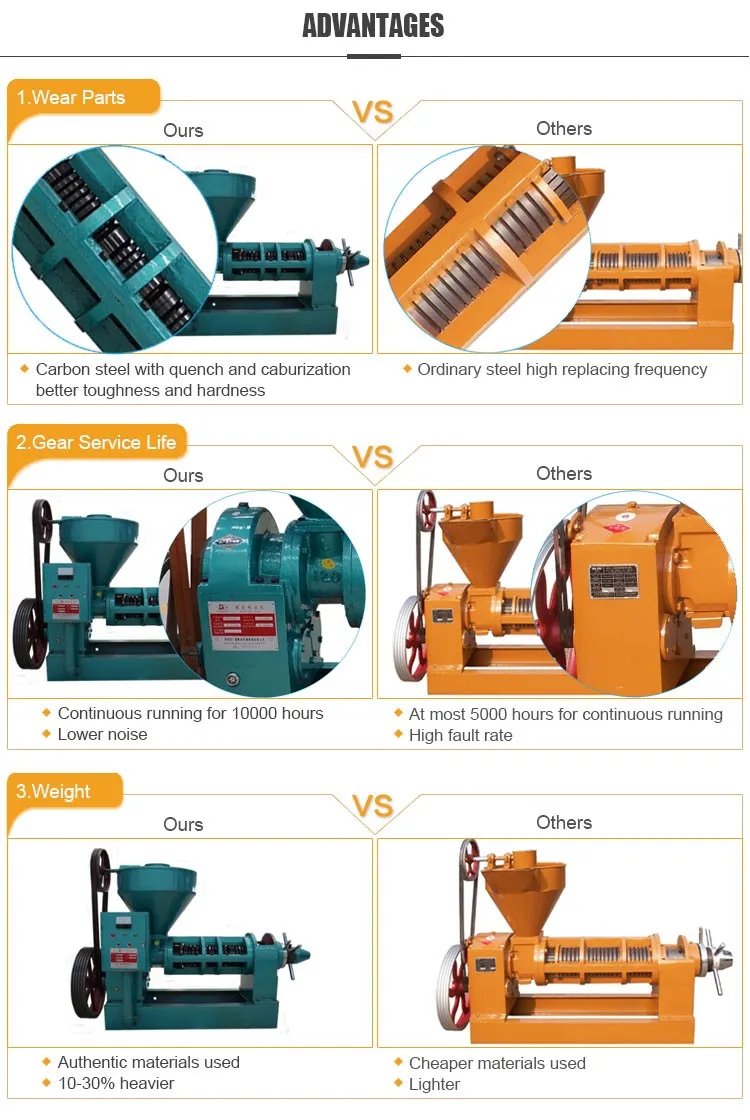

Guangxin Oil Press Machine Advangages

1. More than 30 years of experience in manufacturing oil press.
2. 7 patents of oil press technology.
3. Full inspection before delivery, quality pass rate more than 98%.
4. More than 300 professional workers. 10% of them are mechanical engineers technicians.
5. Widely used in our life, have been exported to more than 70 countries.

3.5-4TPD palm oil processing machine/sesame oil extraction machine

Model
Capactiy (T/24H)
Power (KW)
Weight (KG)
Meaurement (MM)
YZYX70
1.3
4
195
1180*530*1120
YZYX90
3
5.5
285
1250*530*1140
YZYX10(95)
3.5~4
7.5 or 11
520
1650*680*1320
YZYX10-6/8/9
4.5
11
560
1760*680*1320
YZYX10J-2
4.5
11
580
1820*680*1320
YZYX120
6.5
11 or 15
650
1860*740*1310
YZYX120J
7
11 or 15
720
2110*720*1350
YZYX130-8/9
8
15 or 18.5
825
2020*850*1450
YZYX130GX-8/9
8~10
18.5
960
2100*820*1400
YZYX140
9~11
18.5 or 22
825
2010*750*1430
YZYX140GX
9~11
18.5 or 22
980
2100*820*1380
YZYX140CJ
9~11
18.5 or 22
880
2220*800*1440
YZYX140CJ-T
9~11
18.5 or 22
1300(including motor)
3060*760*1310
YZYX140CJGX
9~11
18.5 or 22
1100
2280*820*1380
YZYX168
20
37 or 45 (6poles)
1830
2750*1040*1830
YZYX168P Palm Fruit
20
30 or 37 (6poles)
1700
2650*1100*1830

Note: YZYX series oil press machine is HIGH OIL YIELD oil press machine. Every model has been guaranted with ISO certifications. ALL GEAR IN GEAR BOX ARE BEVEL GEARS

* Model YZYX oil press machine is easy to operate and repair, performs reliably.
* Residue oil in cake is less than 7.8%, high oil yield.
* Wearing parts are forged and quenched treated, hardness reaches HRC57-64, wearable for 1200tons oil material.
* Life time more than 12 years

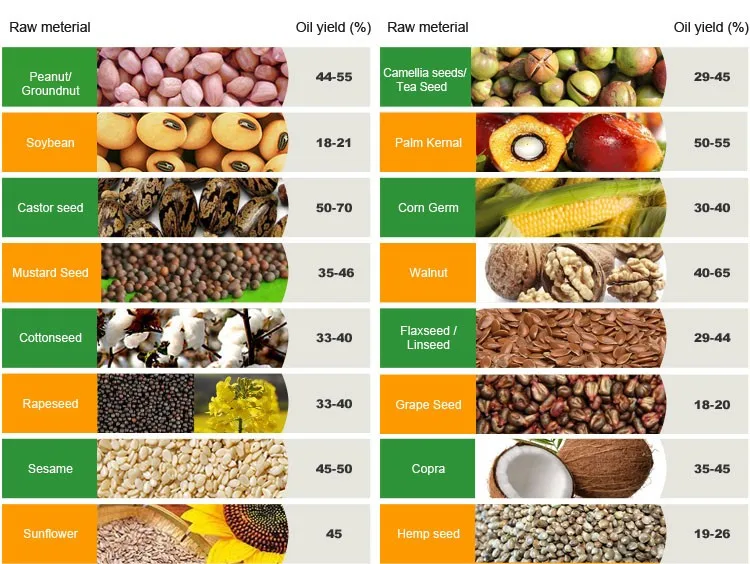

* And is capable of processing a wide range of More than 30 types of oil plants rapeseed, sesame mustard seed ,castor seed cotton seed, soybean, peanut, flax seed, sunflower seed and palm kernel, jatropha, linseed and other vegetable oil plants,etc .

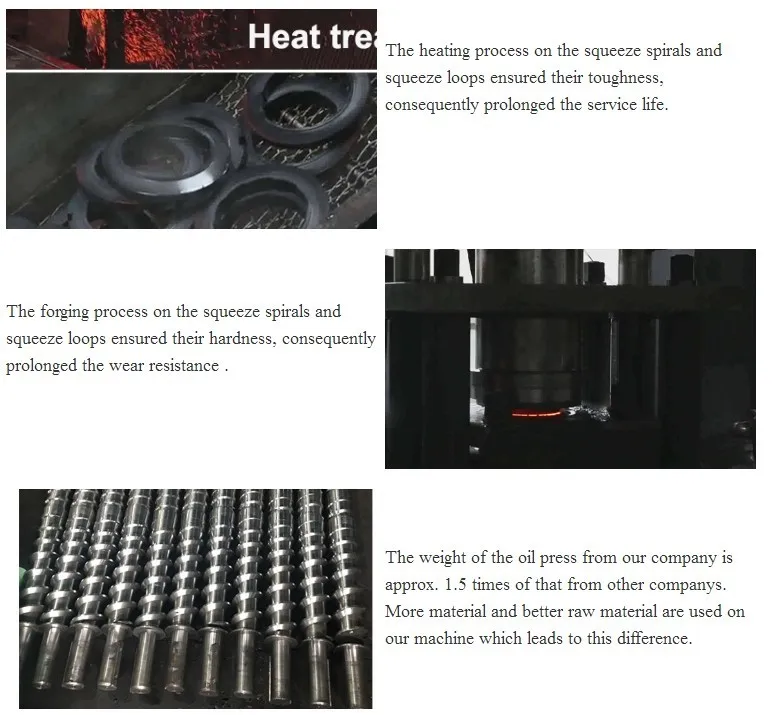

Parts are made of the most suitable material and treated by superb crafts,So our products get longer lifetime and more capacity.

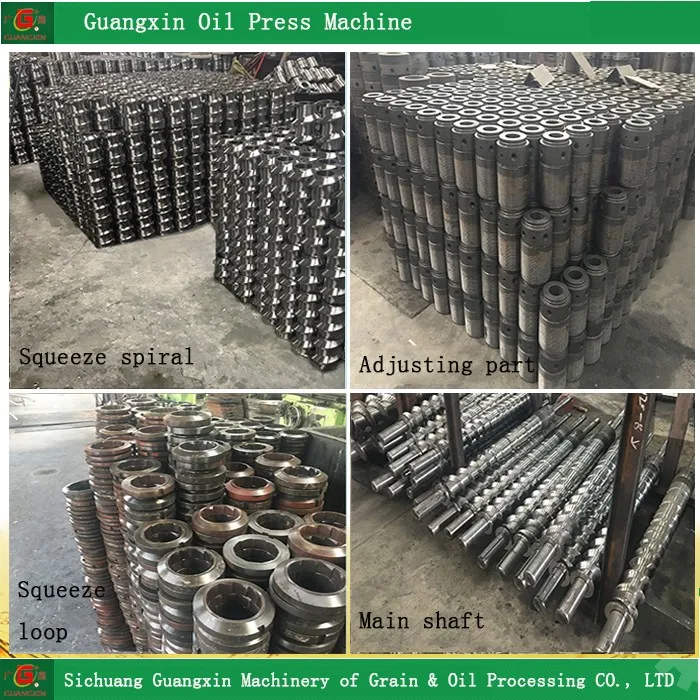

Main parts of palm oil pressing machine

Packing & Delivery

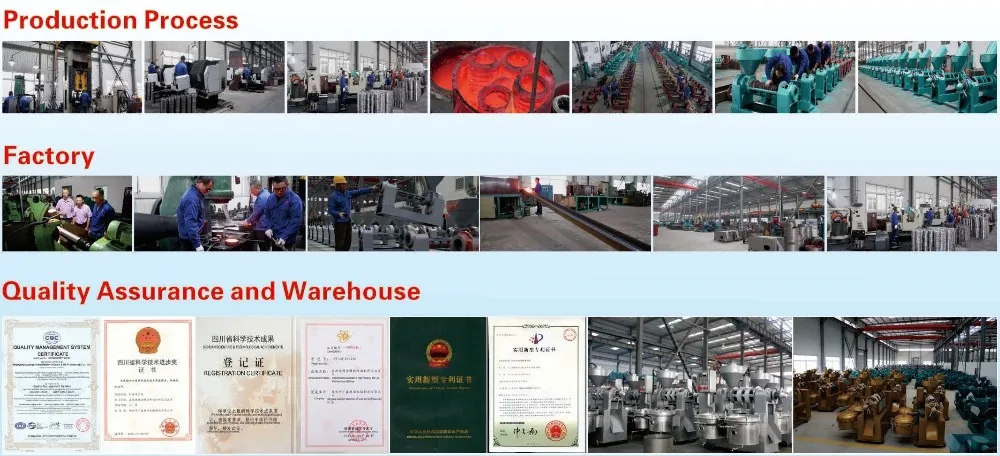

Company Information

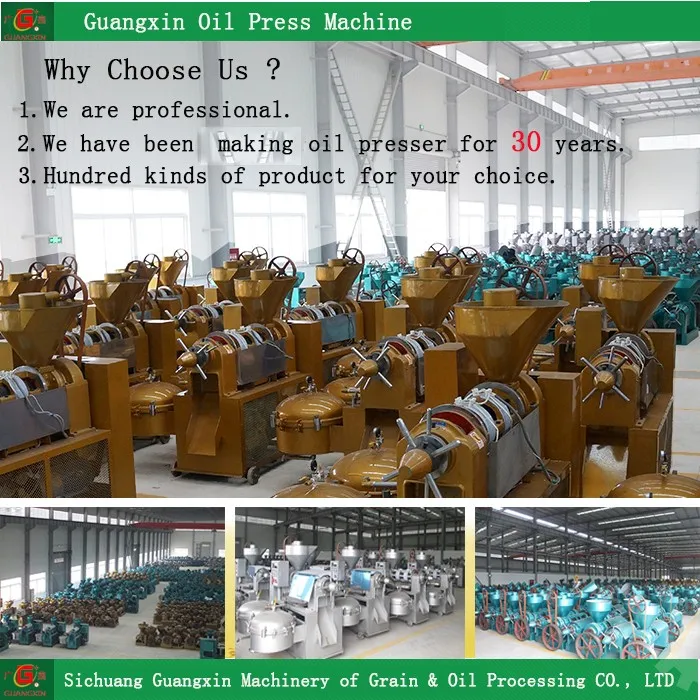

Why Choose Us

Our Services

1. 1 year free warranty,whole lifetime maintenance.
2.Supplying wearing parts all year around
3.Supplying technical solutions at any time
4.Helping design and plan the oil plant's construction
5.Providing installation vedeo
6.Tried orders are available
7.Developing agents with good policies around world.

Trade Show

Every year, Guangxin will attend the biggest international fair held in China each Aprial and October-Canton Fair, meet lots of professional purchasers. We also attended other professional fairs held in Moscow Vietnam Dhaka and Hannover. Our oil press machine attracted large numbers of visitors with its wide applicage and refined crafts.

Related Products

YZYX168 Single Oil Press Machine

91.8% Response Rate

YZYX140 Single Oil Press Machine

91.8% Response Rate

YZYX70 Single Oil Press Machine

91.8% Response Rate

YZYX90WZ Automatic Temperature Controlled And Combined Oil Press

91.8% Response Rate

YZLXQ130 with filter combined oil press

91.8% Response Rate

YZYX168P Palm Fruit Oil Press Machine

91.8% Response Rate

YXMS500*20 Plate Frame Oil Filter

91.8% Response Rate

YLW150 Automatic Dregs Clean Centrifuge Oil Filter

91.8% Response Rate

GLY500 combined oil refining equipment

91.8% Response Rate

FAQ

Q: If I don't know how to operate this machine? How can I do?
A: Our machine has been tested OK and fully assembled before shipping, customer just needs to make2~4 hours wear-in and then can work.

Q: What's wear-in for new machine?
A: Using 10 KG oil cake + 1KG sand + 1KG water, mix them, put in oil press, wear in 3~4hs.
1. 1st hour, adjust oil cake thickness as 3mm.
2. 2nd hour, adjust oil cake thickness as 2.5mm.
3. 3rd hour, adjust oil cake thickness as2 mm.

Q:Can i be a distributor of Guangxin oil press?
A: Of course you can.

Q:What are the benefits of being a Guangxin distributor?
A: - Special discount .
     - Marketing protection.
    - Supporting of marketing development
     - Point to point technical supports and after sales services.

Q: How can i become a distributor of Guangxin?
A: Contact us immediately for further details by sending us an inquiry.
