50KG/H Sunflower Oil Press YZYX70WZ Presse Huile Guangxin Oil Making Machine

FOB Reference Price:Get Latest Price
$2,200.00 - $2,500.00 / Piece | 1 Piece/Pieces (Min. Order)
Model Number:
YZYX70WZ
Power(W):
4KW
Shipping:
Support Sea freight
Lead Time:
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 20 Negotiable
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Manufacturing Plant, Food & Beverage Factory, Retail, Food Shop, Food & Beverage Shops, Agriculture Machinery & Equipment
After Warranty Service:
Video technical support, Spare parts
Local Service Location:
None
Showroom Location:
None
Condition:
New
Usage:
Peanut Coconut Palm Oil
Type:
Cold & Hot Pressing Machine
Automatic Grade:
Automatic
Production Capacity:
1.3TPD
Place of Origin:
Sichuan, China
Brand Name:
Guangxin
Voltage:
220V/380V
Dimension(L*W*H):
1280*1180*1600
Weight:
500KG
Certification:
ISO9001:2008;SGS;TUV
Warranty:
1 YEAR
After-sales Service Provided:
Video technical support
Key Selling Points:
Easy to Operate
Product name:
YZYX70WZ sunflower oil press machine
Color:
can be customized
Capacity:
55kgs/h
Raw material:
Oil Seeds
oil content of dry cakes:
<=7.8%
spiral axes rotate speed(r/min):
36-42
Advantage:
Simple Operation/high efficiency
Application:
Screw Oil Expeller
Material:
Carbon Steel Q235
Company character:
manufacturer with export right
Supply Ability
Supply Ability:
600 Set/Sets per Month 50KG/H Sunflower Oil Press YZYX70WZ Presse Huile Guangxin Oil Ma
Packaging & Delivery
Packaging Details
1. Water Proof Film
2. Standard Exporting Plywood Case(Fumigation customered )
3. Packing each of parts carefully
50KG/H Sunflower Oil Press YZYX70WZ Presse Huile Guangxin Oil Making Machine
Port
Any China Port
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 20 To be negotiated
Video Description

50KG/H Sunflower Oil Press YZYX70WZ Presse Huile Guangxin Oil Making Machine

Oil Press Oil Mill Oil Extraction Oil Processing Machine Oil Filter Oil Refinery Seeds Roaster Machine

30YEARS FACTORY OF OIL PRESS MACHINE ---Guangxin

OIL MAKING PROCESS
The series automatic temperature controlled combined oil presses made by our company are suitable for squeezing vegetable oil from rapeseed, cottonseed, soybean, shelled peanut, flax seed, tung oil seed, sunflower seed and palm kernel, etc.
50KG/H Sunflower Oil Press YZYX70WZ Presse Huile Guangxin Oil Making Machine
Product Description

Combined SPIRAL OIL PRESS YZYX70WZ

Processing Capacity (t/24h) 1.3Tons Per Day
50KG/H Sunflower Oil Press YZYX70WZ Presse Huile Guangxin Oil Making Machine
YZYX70WZ is basic 2-step spiral oil press.
YZYX70-8WZ is 3-step squeezing model, suitable for users with operation experience and stresses on low oil content in cake.
Item
YZYX70(-8)WZ
Revolving speed of spiral axis (r/min)
35-45
Power of main electromotor (kw)
4
Electrical power of filtration (kw)
0.75
Power of temperature controlling (kW)
1.5
Measurement (mm)
1500*1100*1620
Weight (kg)
500

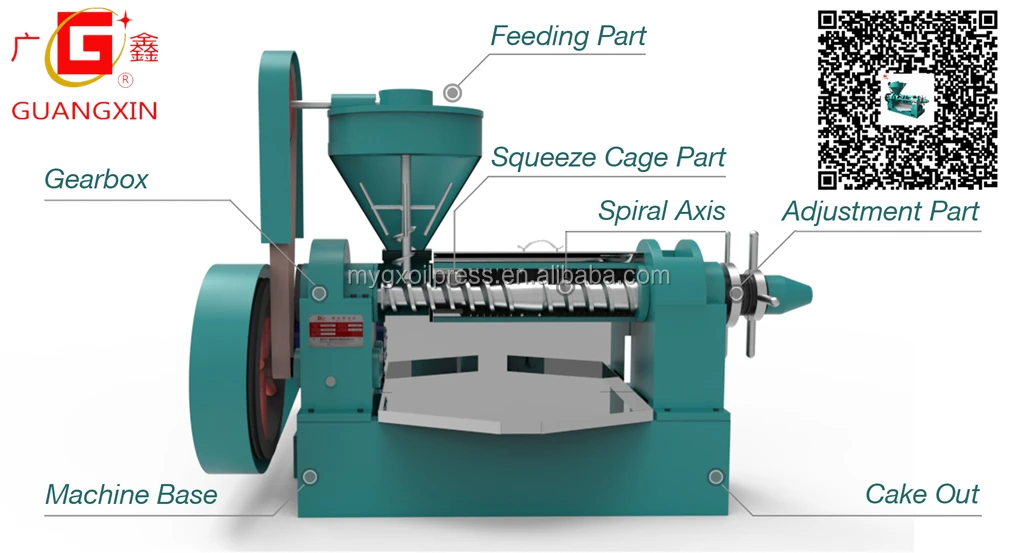

INTERNAL STRUCTURE OF PRESSING CHAMBER

Main technique features:

Below features are based on oil plants with above average quality smoothly and continuously squeezed after good pretreatments, such as screening, husking, flaking and cooking, etc.
50KG/H Sunflower Oil Press YZYX70WZ Presse Huile Guangxin Oil Making Machine
Oil Plants
Processing capacity (t/24h)
Oil content of
dry cakes (%)
Oil yield
efficiency (%)
Electricity consumption
(kW·h/t)
Rapeseed
≥1.3
≤7.8
≥81
≤40
Cotton seeds
≥1.3
≤7.3
≥76
-
Soybean
≥0.9
≤6.8
≥66
≤56
Groundnut
≥1.3
≤6.8
≥92
≤39
1. Healthy! Physical squeezing craft maximally keeps the nutrients such as the protein, fatty acids and minerals, etc.
2. High working efficiency! The spiral squeezing structure can achieve high oil output, thus the oil content of the residue cake
is low.
3. Long durability! All the parts are made of the most suitable material and treated with refined crafts to ensure the long term
runing, such as cemented quenching and tempering to increase the hardness, consequently the durability.
4. Cost-effective! The wearing parts on the machine such as the squeeze loop, squeeze spiral and squeeze bar are designed to be
dismountable. When they are out of service period, users only need to replace them and no need to displace the whole machine.
50KG/H Sunflower Oil Press YZYX70WZ Presse Huile Guangxin Oil Making Machine
COMPARED WITH PEER
COMPARED WITH PEER
Related Products
Guangxin Single Oil Press Machine Processing Capacity 1.3~20TPD (t/24h)
50KG/H Sunflower Oil Press YZYX70WZ Presse Huile Guangxin Oil Making Machine
Model
Processing capacity (t/24h)
Residue oil of the cake (%)
Spiral axes rotate speed (r/min)
Main electromotor power (k.w)
Measurement(mm)(L*W*H)
Weight (kg)
YZYX70
1.3
≦7.8
36~40
4
1180*530*1120
195
YZYX90
3
≦7.8
32~42
5.5
1250*530*1140
285
YZYX10(95)
3.5~4
≦7.8
32~40
7.5 or 11
1650*680*1320
520
YZYX10-5(6/8/9)
4.5
≦7.8
32~40
11
1760*680*1320
560
YZYX10J-2
4.5
≦6.0
32~40
11
1820*680*1320
580
YZYX120
6.5
≦7.0
28~40
11 or 15
1860*740*1310
650
YZYX120J
7
≦6.0
35~45
11 or 15
2110*720*1350
720
YZYX130-8/9
8
≦7.6
32~40
15 or 18.5
2020*850*1450
825
YZYX130GX-8/9
8~10
≦7.6
32~42
18.5
2100*820*1400
960
YZYX140
9~11
≦7.6
32~40
18.5 or 22
2010*750*1430
825
YZYX140GX
9~11
≦7.6
30~40
18.5 or 22
2100*820*1380
980
YZYX140CJ
9~11
≦7.6
32~40
18.5 or 22
2200*800*1440
880
YZYX140CJGX
9~11
≦7.6
30~40
18.5 or 22
2280*820*1380
1100
YZYX168
20
≦7.4
36~44
37 or 45
2750*1040*1830
1830
Company Information
FAIR SHOW
Packing & Delivery
FAQ

Q: Are you a factory or trading company ?
A: We are factory with 30year's manufacturing experiences, and we also have our own trading company . our main products including :screw oil press, seeds roaster, oil filter, oil refinery machine and spare parts etc.


Q: How can we verify that you are a factory ?
A: You can add our contact information and we will show our factory to you online.


Q: If i don't know how to operate this machine ? How can i do ?
A: Our machine has been tested ok and fully assembled before shipping, customer just needs to make 2-4hours wear-in and then can work.


Q: What's wear-in for new machine?
A: Using 10 KG oil cake + 1KG sand + 1KG water, mix them, put in oil press, wear in 3~4hs.
1. 1st hour, adjust oil cake thickness as 3mm.
2. 2nd hour, adjust oil cake thickness as 2.5mm.
3. 3rd hour, adjust oil cake thickness as2 mm.


Q:What are cold press and hot press?
A: Cold press is pressing dry and raw seeds. usually need to press 2 tims to get maximum oil.

Hot press is pressing roasted seeds. usually only 1 time to get maximum oil. peanuts roast to 125~130 degree with 1~2% moisture. (we produce seeds roaster heated by economical fuel.)

Q:What serivice do you provide?
A: (1) 1year free warranty, whole lifetime maintenance.
    (2) Supplying wearing parts all year around.
    (3) Supplying technical solutions at any time.
    (4) Helping design and plan the oil plants construction.

(5) Providing installation video.

(6) Developing agents with good policies around world.

Q: How can i become a distributor of Guangxin?
A: Contact us immediately for further details by sending us an inquiry.


We will appreciated if these following 2 tips contained in your inquiry. Tips1.The raw material is:_______ Tips2.The capacity of the machine you need is:______ Thank you and looking forward to your inquiry,we will response immediately.

Make order right now! And why?

One of our clients called us for buying wearing parts and he told us that his machine bought from us in 1990s. Its really! So, don't worry about the quality. Its beter than your think!
